ASME-05A 260kg SMC-04B 180kg.cm ASME-05B 380Kg.cm High Torque Servo Alloy Robot Servo for Digital Large Robot Robotic Arm Gimbal

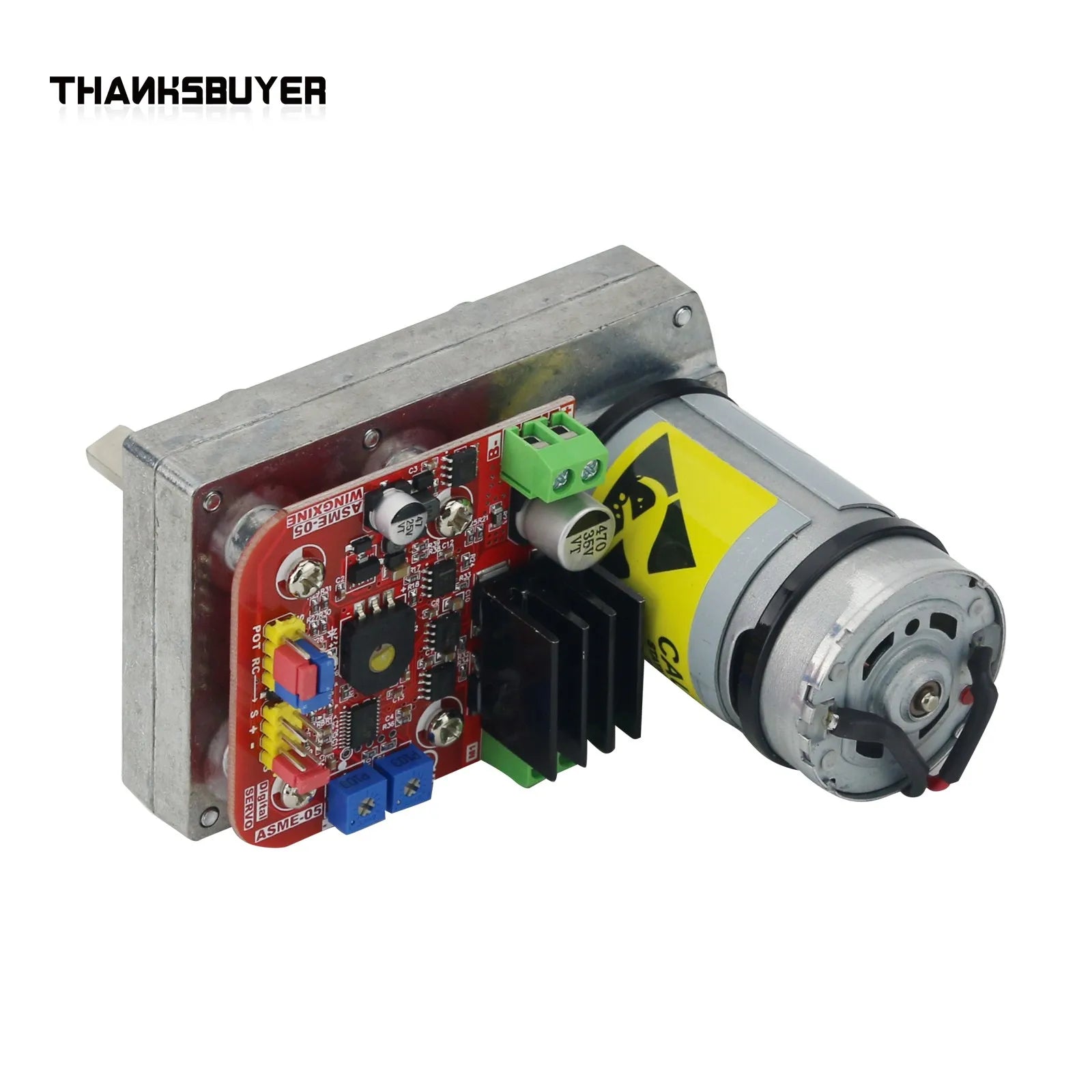

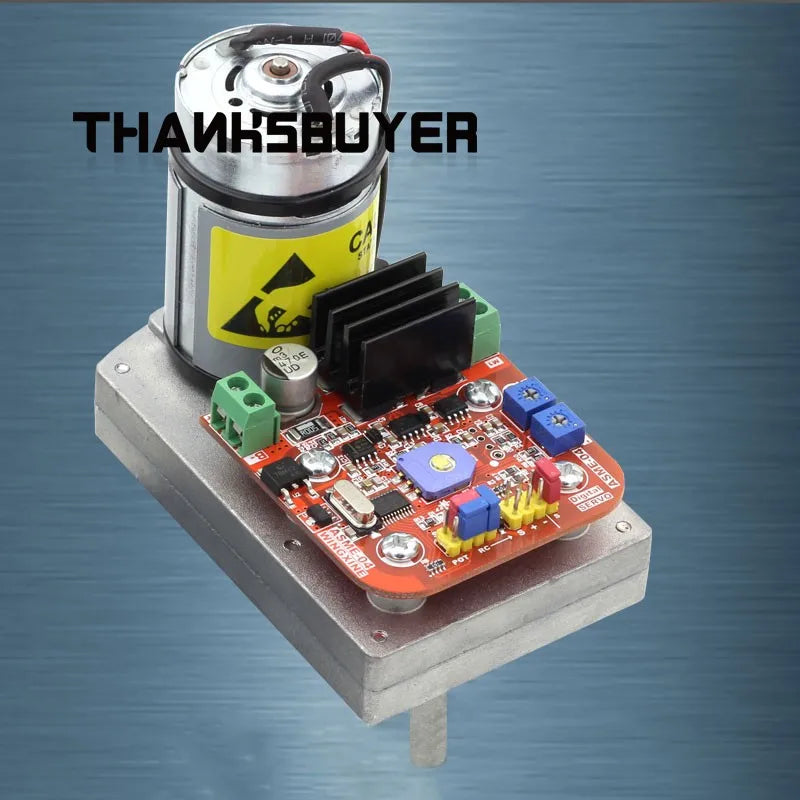

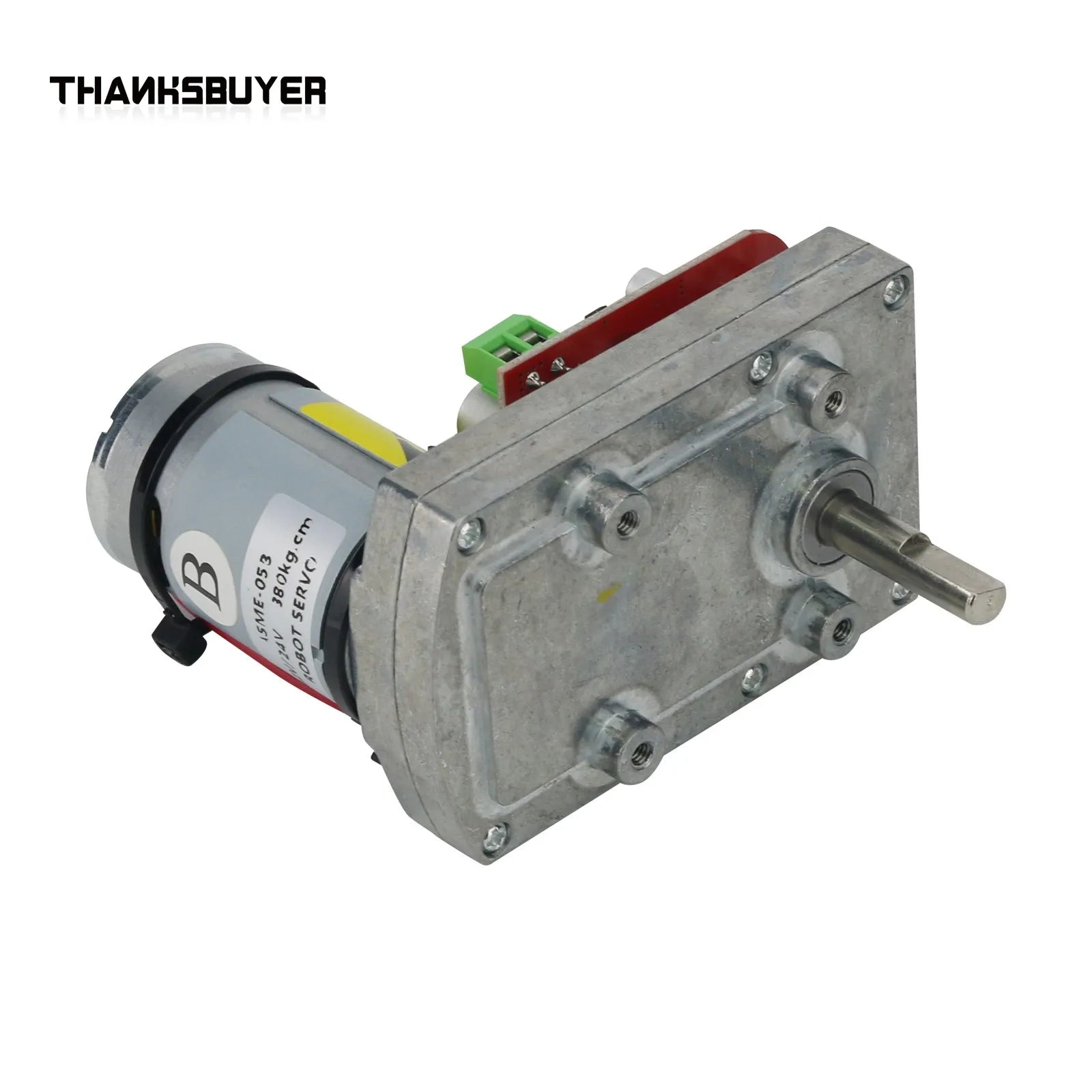

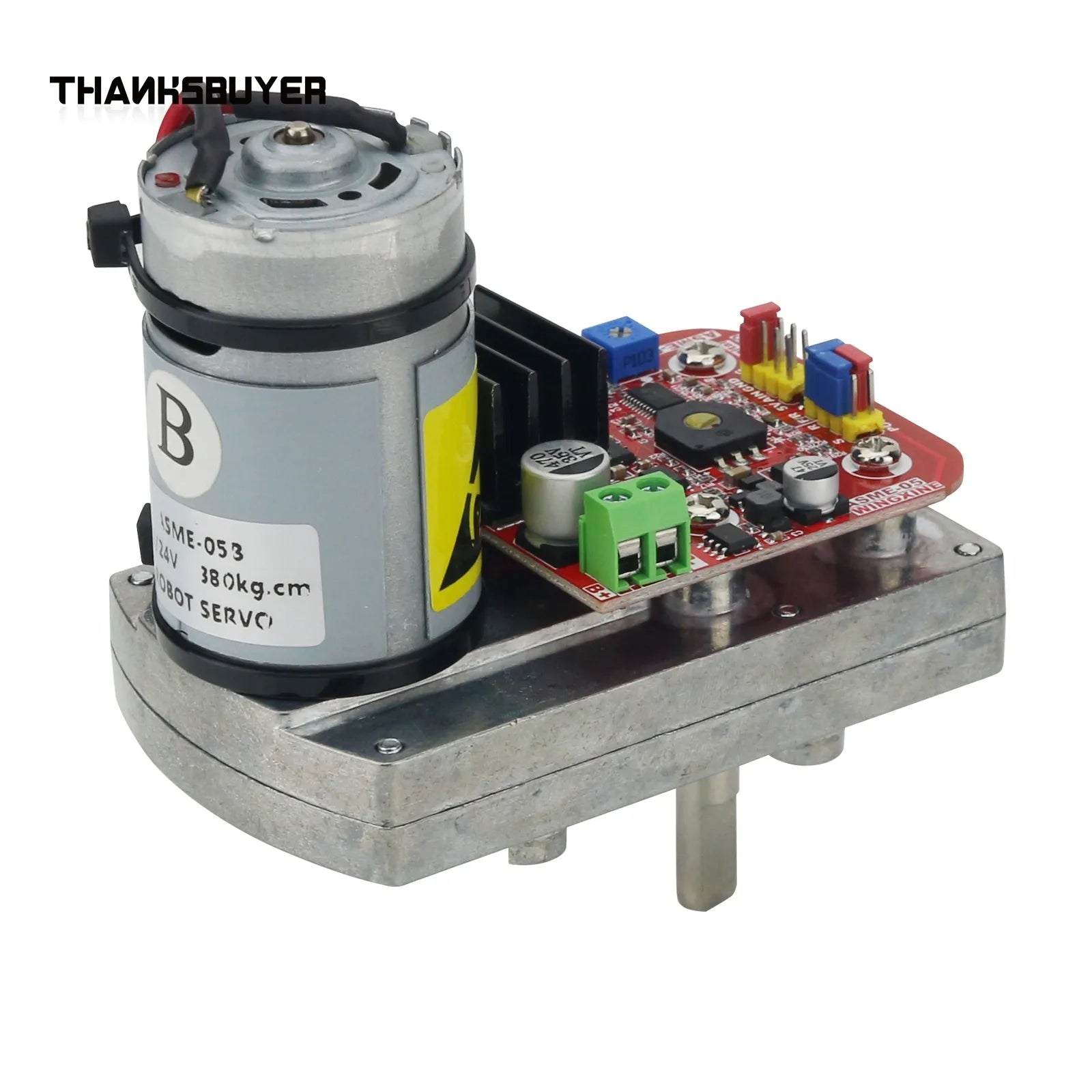

ASME-05B 380Kg.cm High Torque Servo Alloy Robot Servo for Digital Large Robot Robotic Arm Gimbal
Features:
- ASME-05B 12V-24V high torque servo
- Super stable, smooth operation and super anti-interference ability
- The digital servo is responsive, with large travel and zero blind spots. It is not an analog servo
- Compatible with remote control systems for Futaba, JR, SANWA, Hitec, etc.
- Unique power stabilization technology ensures that the servo works continuously. It is completely different from the fuse protection used on other servos. Once the fuse is blown, the servo cannot continue to work. The ASME-05B servo can be controlled stably to operate within the safe torque and the servo never goes offline
- Meets the requirements of various mechanical designs. Please contact customer service for details
- Suitable for servo controller, model airplane wireless remote control and analog voltage control
- Alloy gear high-power motor with high torque output
- Aluminum alloy gearbox body is ultra-light
- Easy to install and durable to use

Application:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angles
- Large camera PTZ remote control
- Various occasions that require high torque angle control

Rated Parameters:
- Rated voltage: 12V~24V/DC (7V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 5A. It is recommended to use a switching power supply or battery greater than 5A)
- Limit angle: ±150° or 0°~300° (MAX). Servo has electronic limit adjustment
- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multi-channel servo controller mode. 2. Analog voltage mode: 0V-5V input voltage (0.22V corresponds to 0° and 4.78V corresponds to 300°)
- Material: Gear and shaft: alloy steel; gearbox body: cast aluminum
- Weight: 550g/1.2lb
- Dimensions: 95mm x 60mm x 110mm/3.7" x 2.4" x 4.3"
- Mechanical life: >1,000,000 times/full load (conservative value)

Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 5A±0.2A (MAX)
- Working angle: ±150° or 0°~300° (MAX)
- Control methods: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse
width)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage (0.22V corresponds to 0° and 4.78V corresponds to 300°)
- Weight: 510-560g/1.1-1.2lb

Specifications:
- Model: ASME-05B
- Starting torque: 380kg.cm MAX.
- Holding torque: 340kg.cm MAX.
- Rated speed (24V power supply): 0.5s/60°

Package Included:
- 1 x Servo

Packaging Details:
- G.W.: 0.65kg

Note:

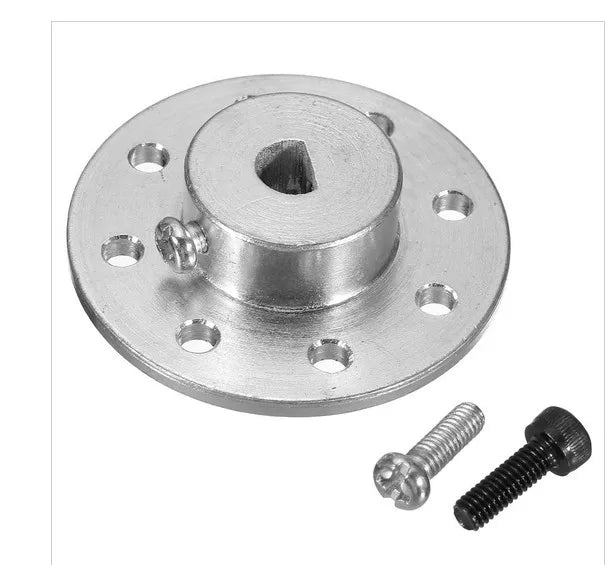

- Servo horn is not included in the package.

------------------------------------------------------------------------------------------------

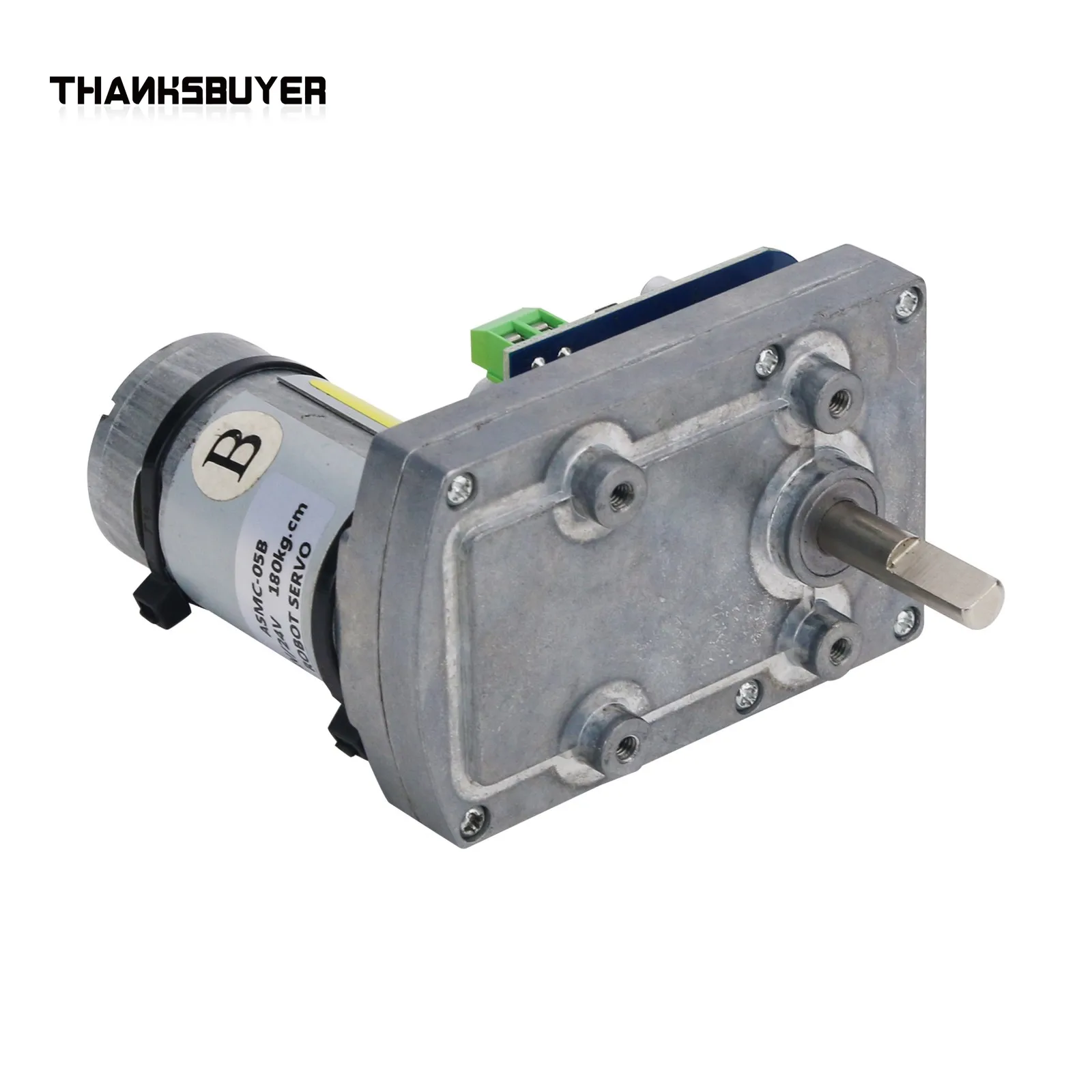

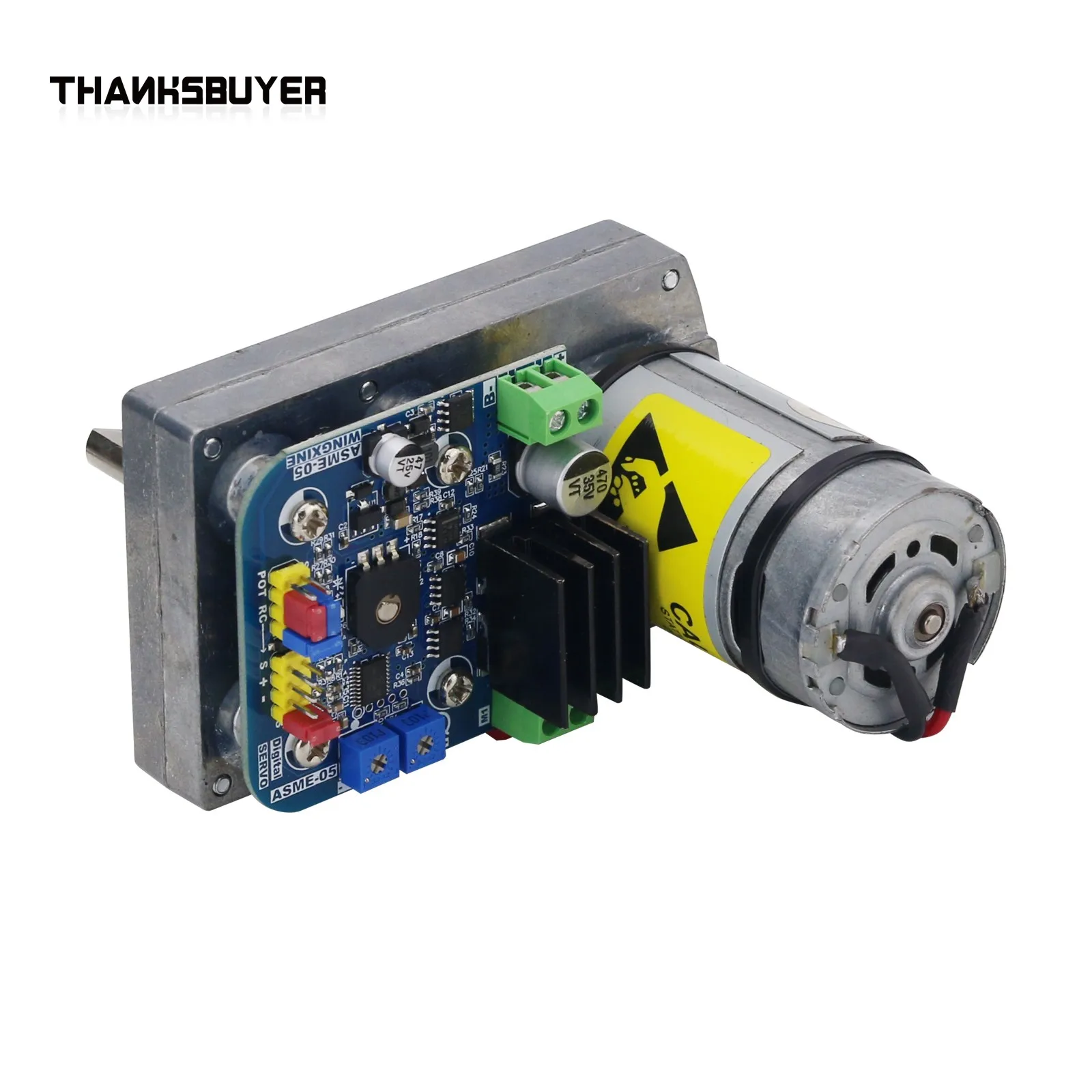

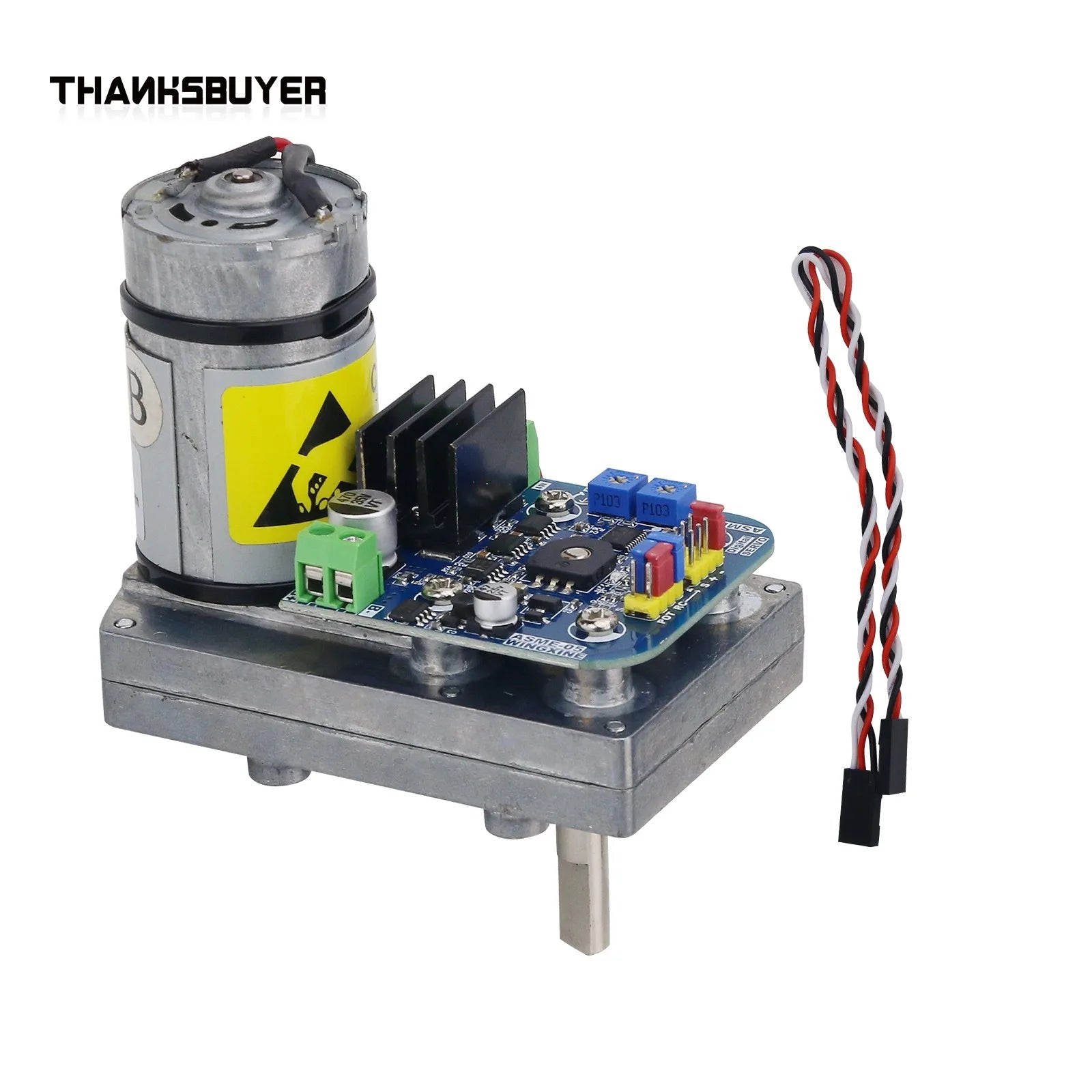

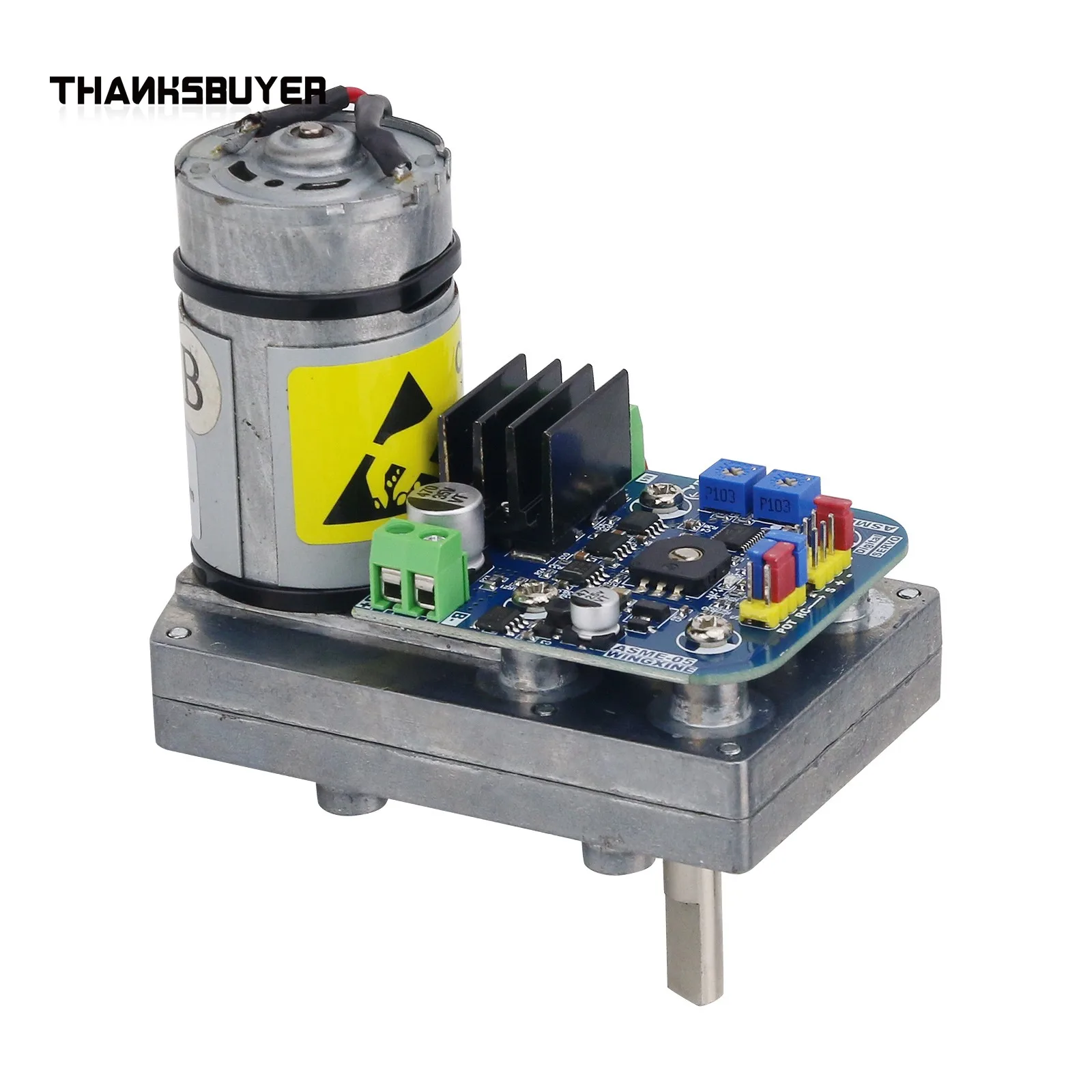

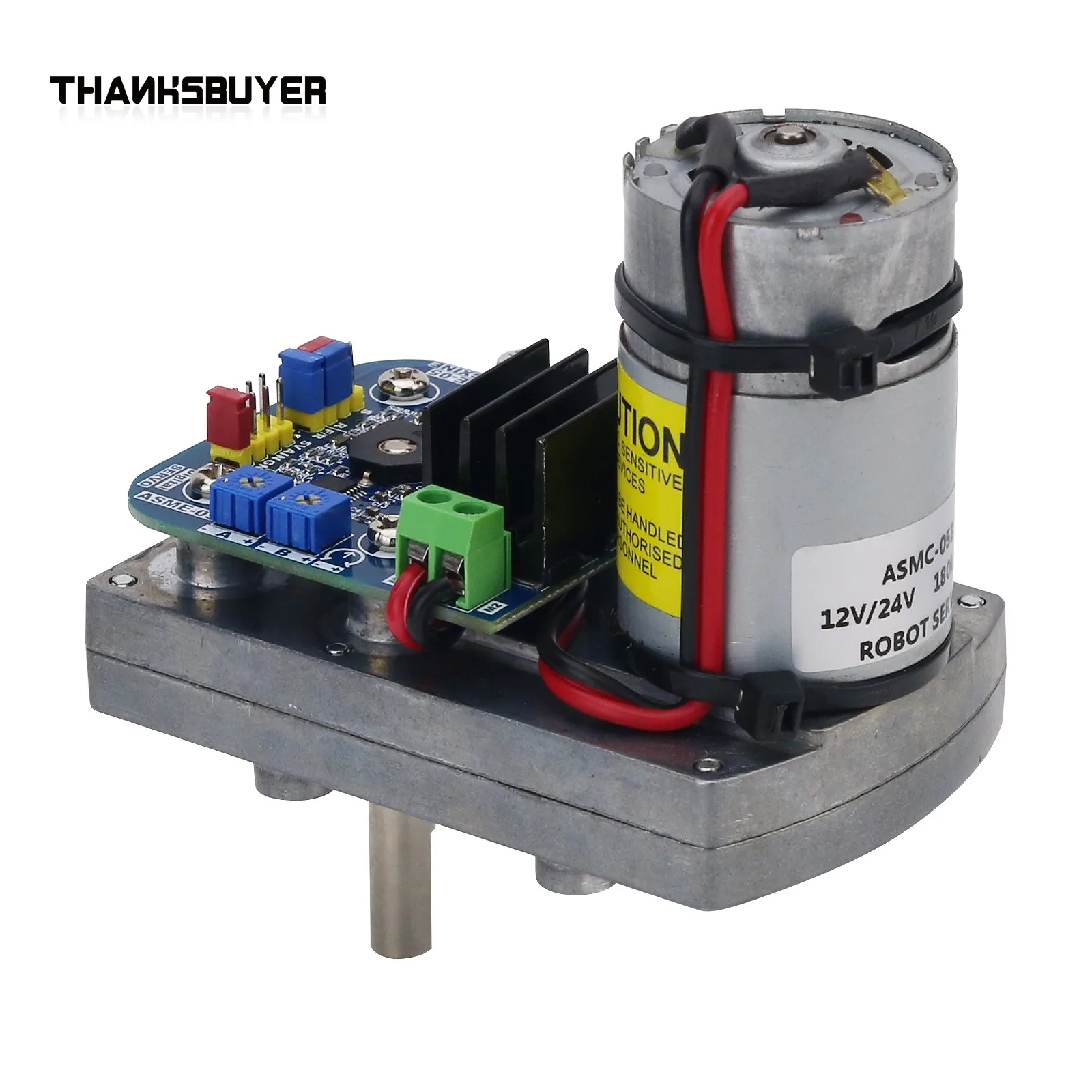

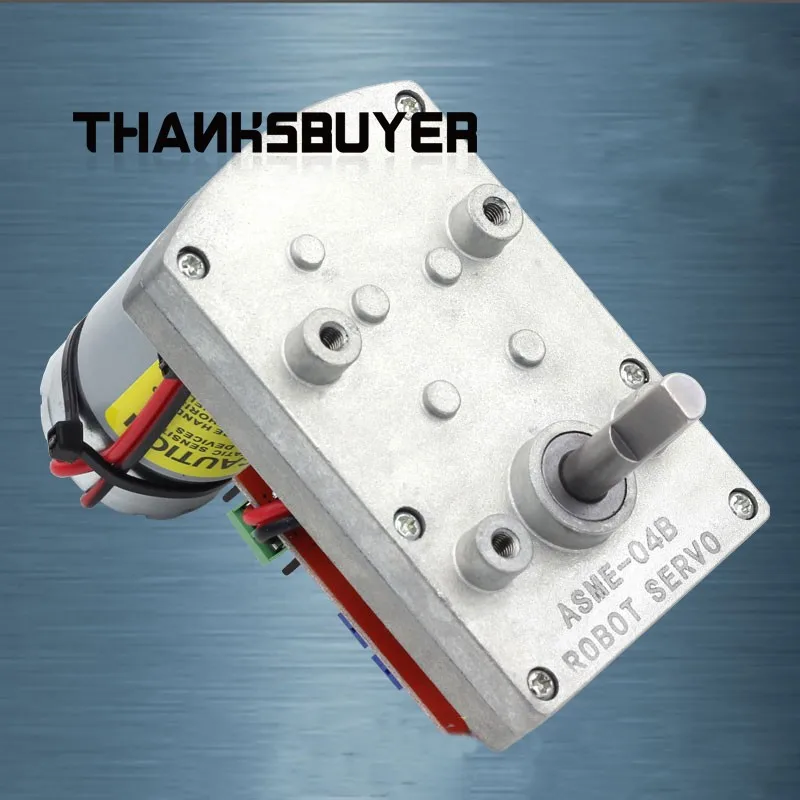

High Torque RC Servo DC12V 24V 180kg.cm Steel Gear for Robot Mechanical Arm ASMC-04B

Function:
- Potentiometer control, remote control
- Current adjustment and angle adjustment
- CW and CCW switching, AD&PWM switching, pulse width 1-2ms&0.5-2.5ms
- Compatible with Futaba, JR, SANWA, Hitec, etc.

Parameters:
- Working Voltage: DC12-24V
- No Load Current: <500mA
- Maximum Torque (Actual Measurement): 180kg.cm (24V); 1764N.cm (24V); 90kg.cm (12V); 882N.cm (12V)
- Angular Velocity: 0.5s/60°, 24V; 1.0s/60°, 12V
- Rotation Angle: 300° MAX. (0-300°, adjustable)
- Input Mode: Pulse signal (remote controller, multi-channel controller, SCM); Analog voltage signal (potentiometer)
- Pulse Signal Input Range: 0.5ms-2.5ms for all "multi channel controller", 1ms-2ms for drone remote controller, SCM program, Arduino
etc.
- Voltage Signal Input Range: 0-5V
- Control Accuracy: 0.32°
- Weight: 530g
- Gear Material: Steel
- Size: 95.5 x 60.5 x 102.6mm
- Application: Robot, mechanical arm, other high torque control area
- Power Input: DC12-24V
- Motor 0utput: 12-24V

Package Included:
- 1 x Servo
