Arc Cigarette Lighter DIY Kit Electronic Lighter Kit High Voltage Arc Igniter DIY Kit 3-5V 5A

  Reminder ！！！If you want the product to reach your destination quickly and safely, please choose the logistics transportation method with tracking! ! Untraceable logistics packages, such as Cainiao Economy / Global , are prone to package loss! ! We have no control over this logistics. thanks.Happy shopping.  : )

    For DIY products, buyers need to weld and assemble by themselves. First of all, as a seller, we only guarantee that the product is intact before shipping, and cannot guarantee 100% success after installation. The installation of the circuit requires the buyer to have circuit experience, we do not accept malicious disputes caused by the installation error causing the product to not work properly, in this case, we will blacklist it and make a complaint. Please think carefully before paying. There are detailed installation instructions in the product, please read it carefully and be patient to find the cause of the problem, not to blame. If you have any questions, please contact customer service, thank you!

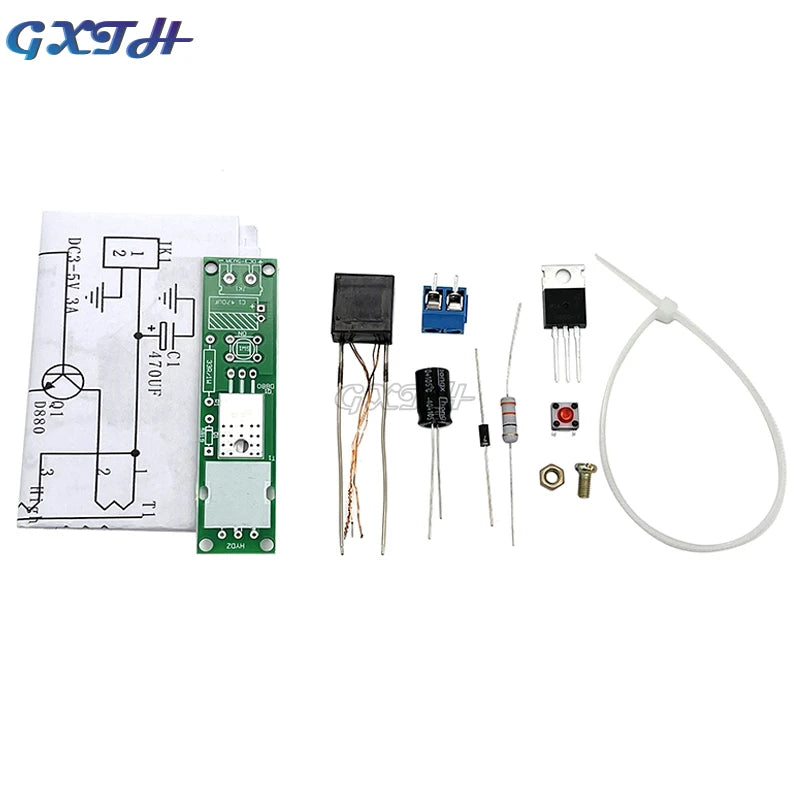

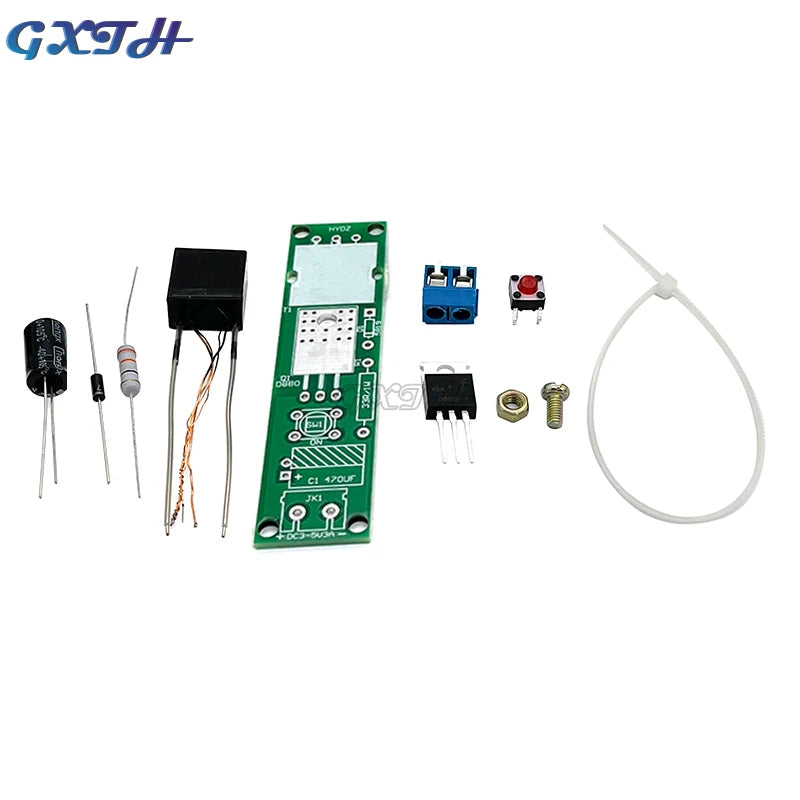

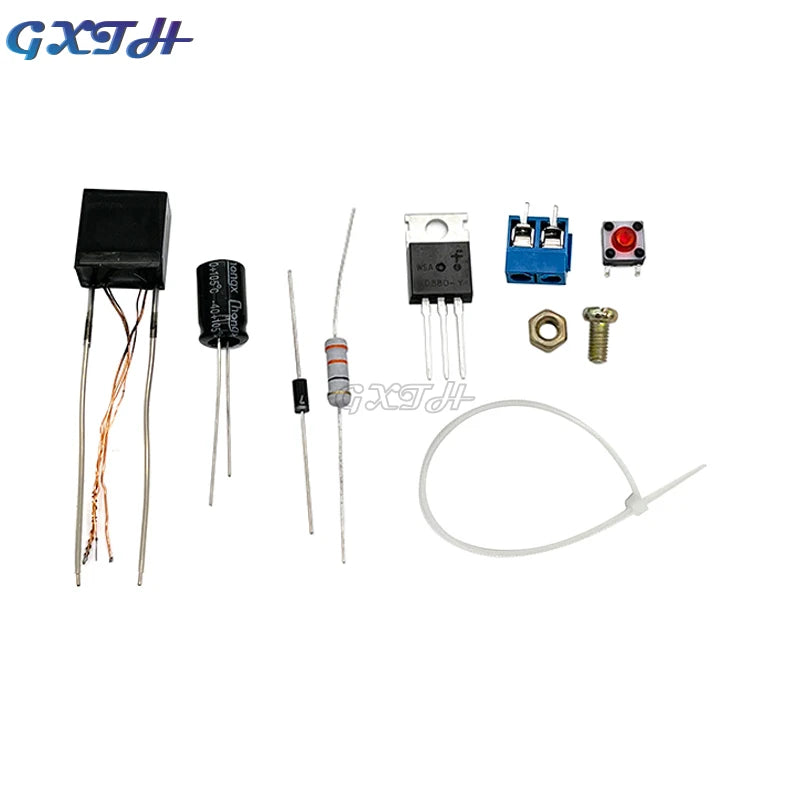

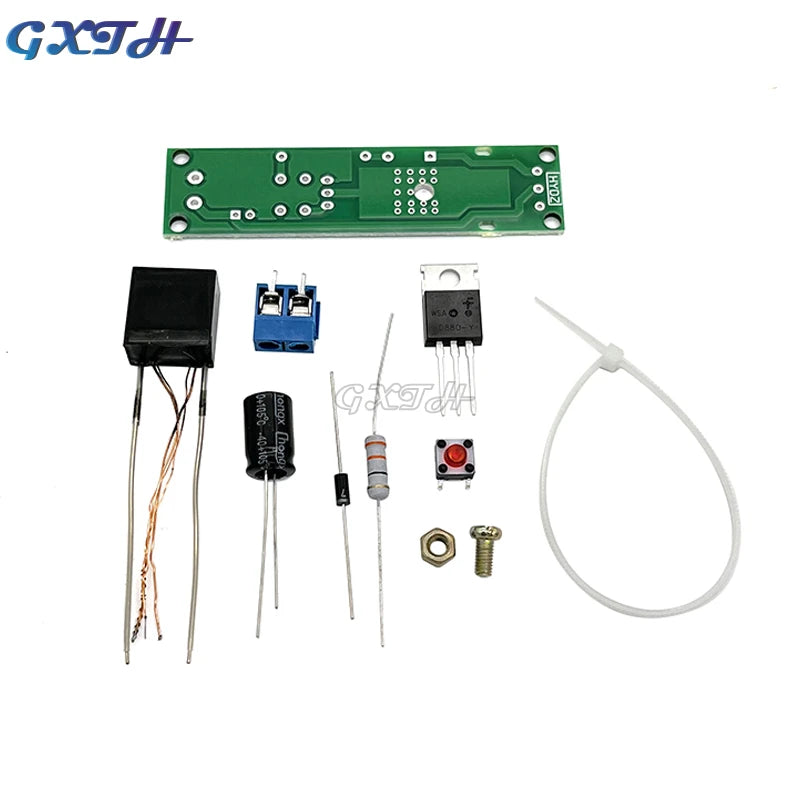

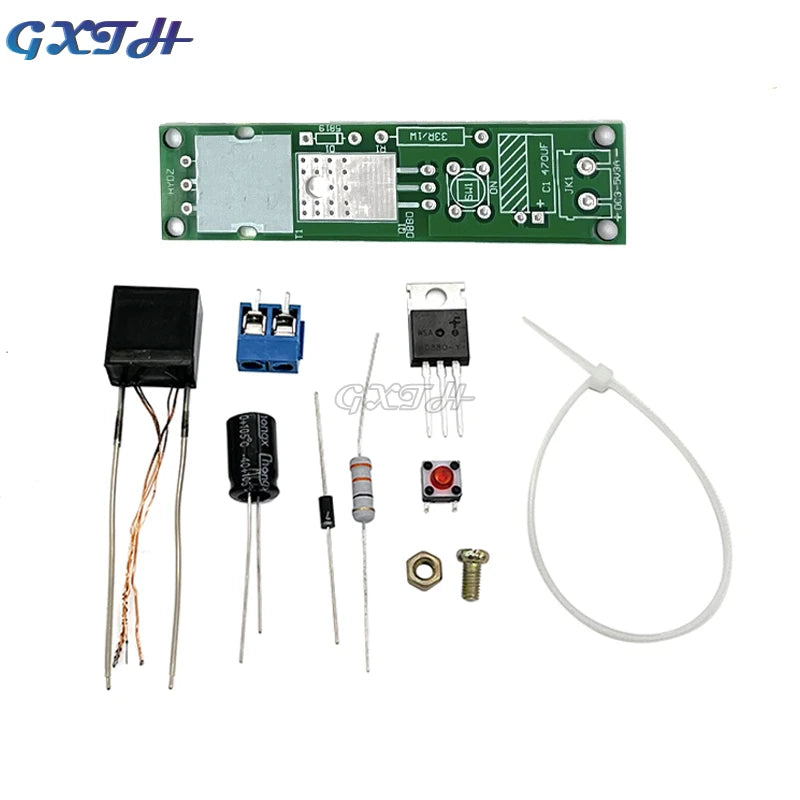

  The product is shipped in parts, and the buyer needs to weld it by himself. When the input terminal of this product is connected to a DC 3-5V power supply, and the secondary high-voltage output is not connected to a high-voltage rectifier diode and capacitor, the output two-stage line terminal can generate a purple high-temperature arc of ≤0.8 cm long, no crackling sound, but the temperature is very high, It is easy to light paper and cigarettes instantly, and even very thin iron wires burn with sparks (such as the scene where the thin iron wires burn in oxygen during the chemical test of junior high school, but it is not as intense as in oxygen)

  The transformer has been encapsulated with resin, which has high safety and can work reliably and continuously for a long time. However, it is recommended that each time the cigarette is turned on for no more than 1 minute, pay attention to heat dissipation.

Parameter:

Kit size: 71L*18W*12Hmm

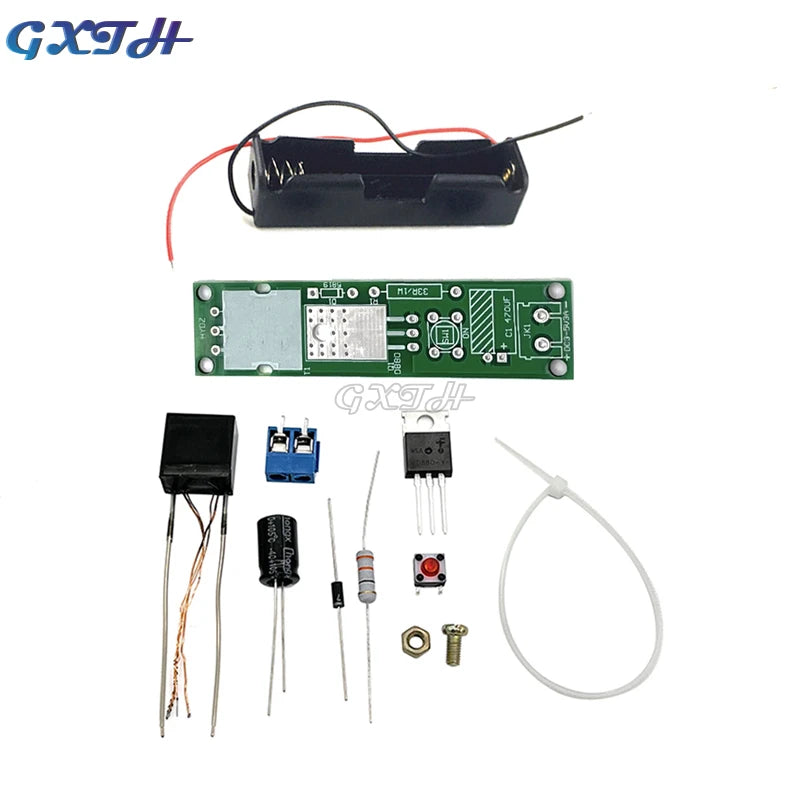

Voltage and current power: DC 3-5V, current 5A, more than 15W. It is recommended to use a 3.7V 18650 lithium battery.

Output pulse voltage: 0.5kv-0.8kv

Working frequency 20khz-25khz

Arc distance: 5-8mm

Transformer wire processing:

1. Distinguish the three wires and apply a layer of tin on the ends of the wires

2. Use a screwdriver to wrap the excess wire around like a spring

3. After the three wires are wound, ensure that the left side is the thin wire, the middle two are combined, and the right side is the thick wire.
